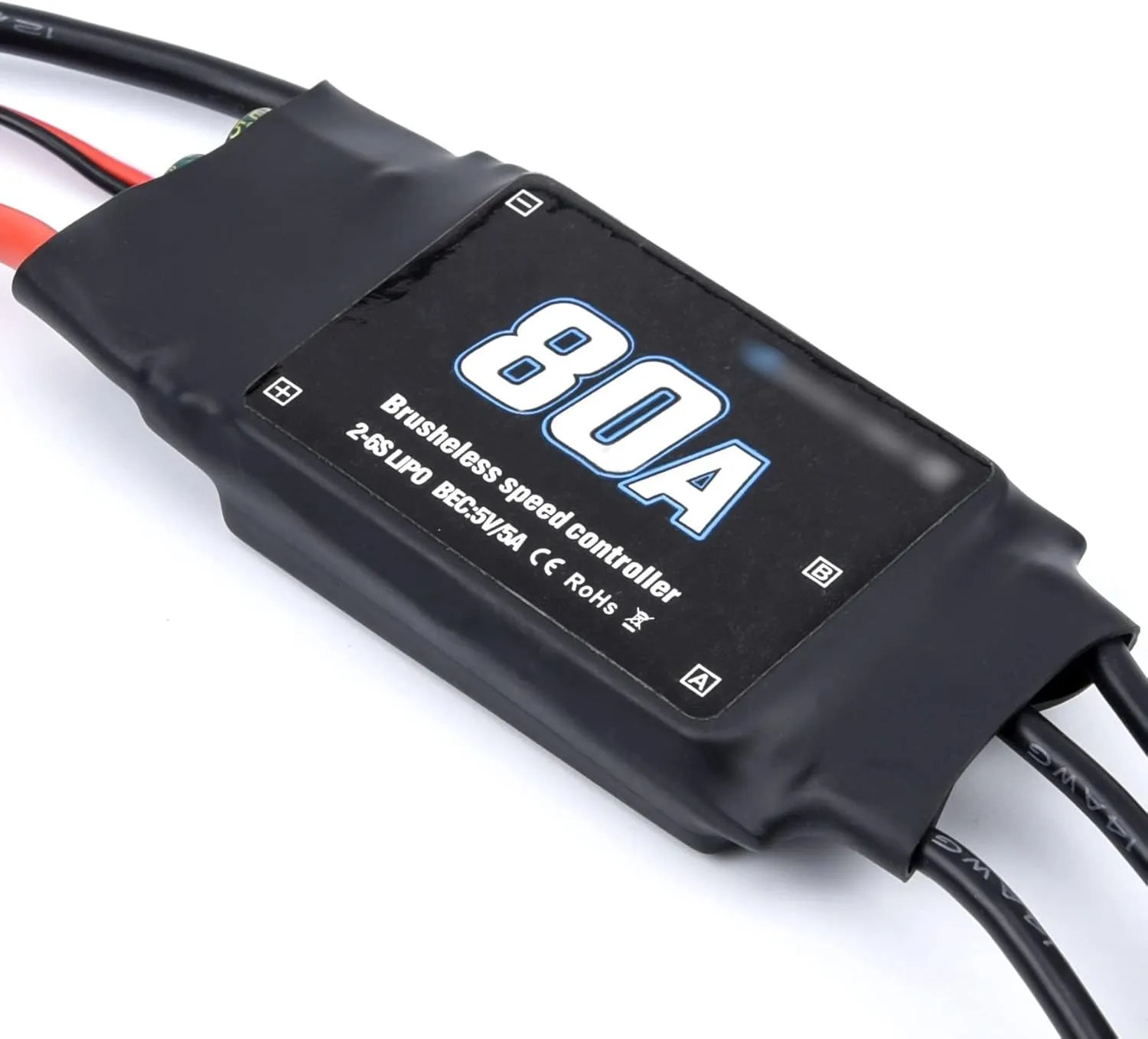

- 100% Pure
- Used to replace old, easy to use and reliable.
- Output : Con.current 80A ; In.Current 100A ( No less 10s).
- Input: 2-6S Lipo Or 5-118 NiMH / NiCd battery pack.
- Throttle signal refresh rate: 50Hz-432Hz.
- Maximum speed: 210000 2-pole motor rev / min, 6-pole motors 70,000 rev / min, 12 pole motors 35,000 rev / min.
- Size : 89 x 40 x 12 mm.
- Please check the pictures, models and part number carefully for compatibility before ordering.
Note:If you have any questions please feel free to contact us and we will solve your problem.
Make the throttle max/highest before connect to battery. Then you will hear 2 beep. 3 beep. 4 beep by cycle.
1.Make the throttle from max to min fast when 2 beep,it is setting the Throttle Range.
2.Make the throttle from max to min fast when 3 beep,it is settting the ON/OFF of the Synchronous Rectifying.
3.Make the throttle from max to min fast when 4 beep,it is settting the ON/OFF of the Brake Mode.
2.1 Security power function: When the power is turned on, regardless of the throttle stick at any position will not start the motor immediately to prevent personal injury;
2.2 Throttle range calibrated function: to adapt the throttle differences between different stroke, improve the linearity of throttle response;
2.3 programmed project (available throttle stick or card LED parameter settings):
(1) Brake setting: No brake / with brake;
(2) Battery type: Lithium battery / NiMH;
(3) Low Voltage Protection Mode: Soft Shutdown / hard off;
(4) Low Voltage Protection Threshold: low / medium / high;
(5) Start mode: Normal / Soft / Super-soft and start;
(6) Timing: low / medium / high;
(7) Restore factory defaults;
2.4 Comprehensive protection features:
(1) undervoltage protection: the program set by the user when the battery voltage is below the protection threshold, ESC automatically reduces the output power;
(2) Overvoltage Protection: input voltage exceeds the input range are not allowed to start, automatic protection, also issued a hasty "beep"
Warning;
(3) Overheat protection: built-in temperature detection circuit that automatically reduces the output power ESC temperature is too high;
(4) remote signal loss protection: remote control signal is lost for 1 second to reduce the power, and then have two seconds to turn off without the remote control signal output.
Specification:
