- 1" std size with Clevis Threaded Pin Diameter 1.14"
- Working Load Limit (WLL), Do Not Exceed: 8.5 Tons (17,000 lbs)
- Breaking Load: 51 Tons (102,000 lbs)
- Material: Forged Steel. Surface: Bow: Hot Dip Galvanized, Pin: Powder Coated

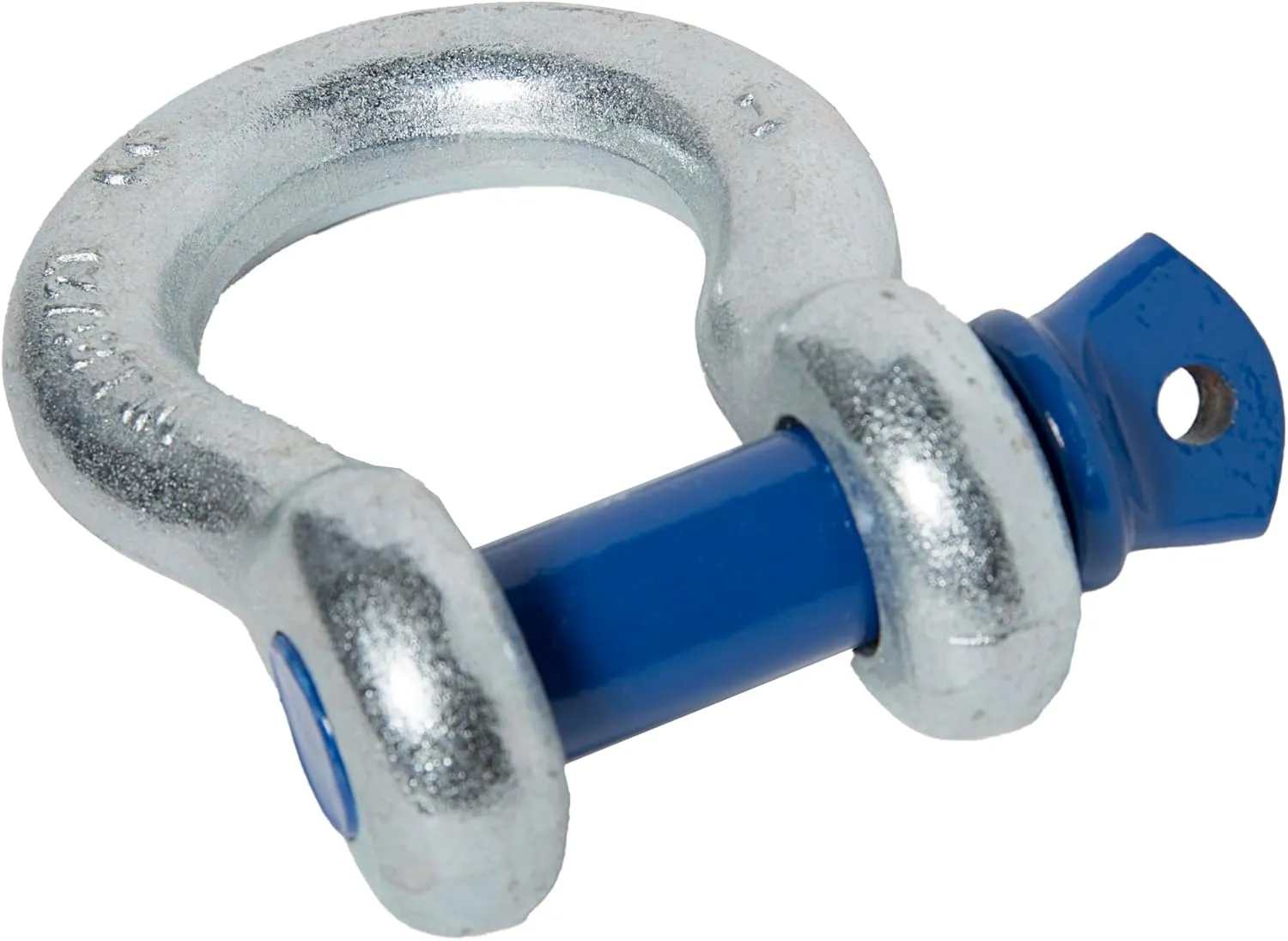

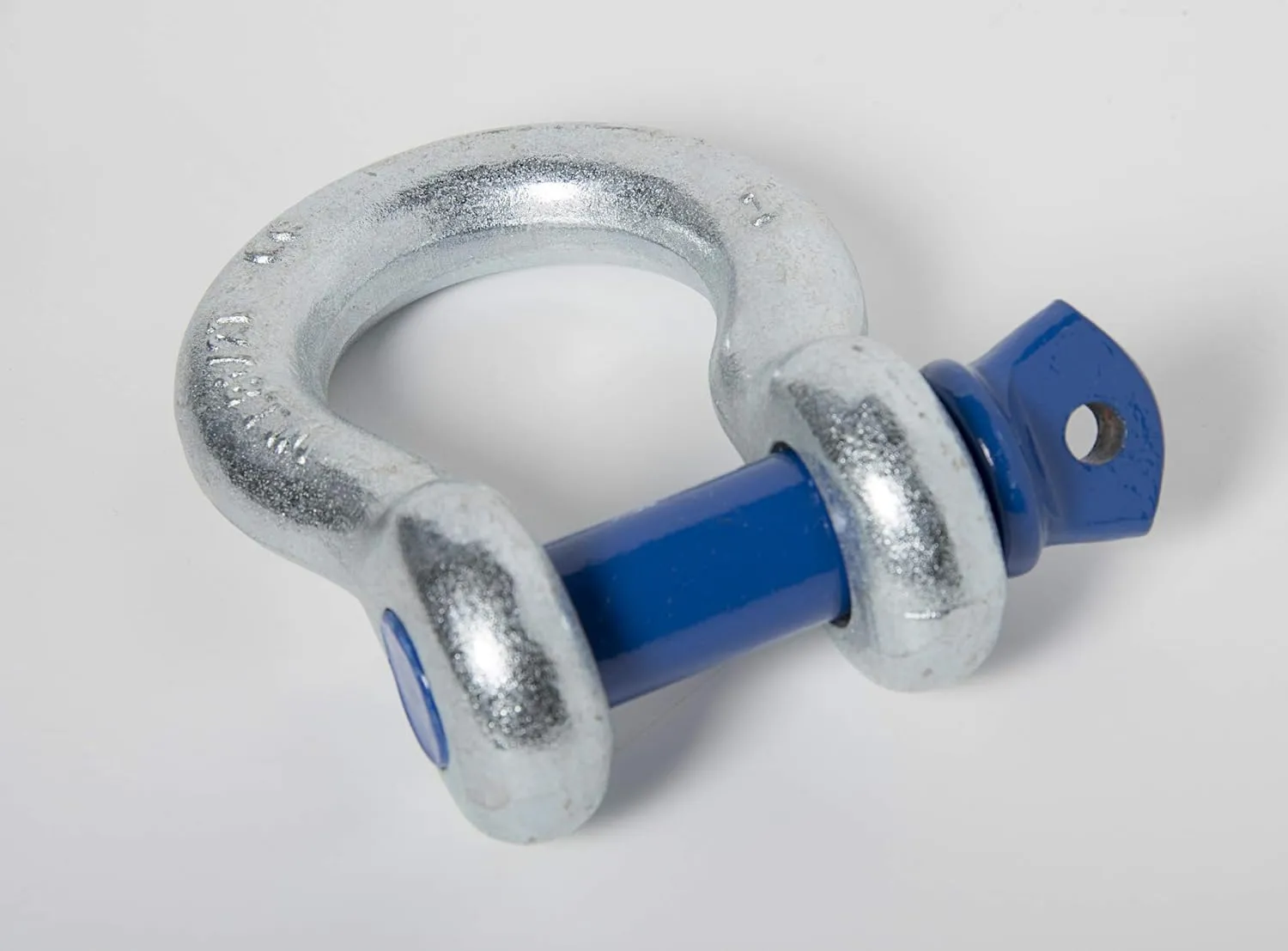

Brand New Premium 1" Bow Shackle from Hi-Gear Products. Constructed from 1" thick, ultra-high tensile strength steel, these Zinc Coated Bow Shacklesand Powder coated painted Pins resist damage even in the toughest elements. Features a threaded screw pin 1.14" in diameter ideal for both swift fastening and removal. As opposed to narrower D-Shackles, the larger "O" loops on these bow shackles are designed to take loads from multiple directions without developing unsafe side loading. Working load limit of 8-1/2 tons (18,500lbs). A generous 2.65" wide space inside the "O" shape accepts multiple connection points and larger straps or connections for all of your rigging, pulling and hoisting needs. Shackle measurement are shown on the pictures. Threaded pin is easily removable.
